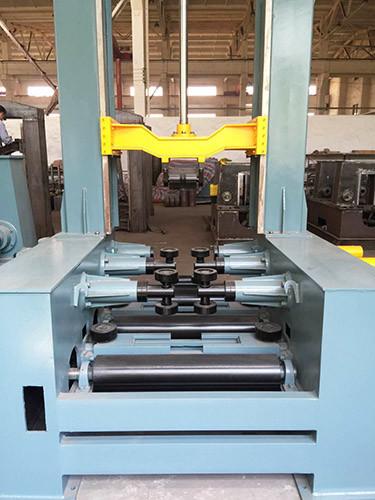

Automatic H / I Beam Spot Welding Assembly Machine 1200~1800mm Web Height

Name: Automatic H I Beam Spot Welding Assembly Machine 12001800mm Web Height
Brand: Metalwork
Price: 1 USD

Brand Name : Metalwork

Model Number : HZL-1200 / 1500 / 1800

Certification : CE, ISO, CCC

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 100 sets per month

Delivery Time : 30 days

Packaging Details : 1 x 20' GP

Voltage : 380V 3-phase 50Hz or Customized

Web Thickness : 6-32mm

Web Length : 4000-15000mm

Flange Thickness : 6-40mm

Flange Plate Width : 200-800mm

Color : Red+black, Blue+yellow, grey+yellow or customized

Contact Now

Automatic H / I Beam Spot Welding Assembly Machine

Performance:

The vertical assembly machine which the flange, web fastening and calibrating, positioning, and auto spot welding equipped, all of which accept the Japanese Mitsubishi programmable controller and the AC frequency converter so as to increase the productivity one times above comparing with common products, with the features of stable and reliable working state and the welding gun is equipped by the arc-tracing device to ensure the quality of welding.

Machine body: main frame upper gantry assemble flange-web in-phase clamping aligning unit driving reducer
Input conveyor: 2600 mm x 3 sets
Out conveyor : 2600 mm x 3 sets
Hydraulic system: oil pump station high pressure hose hydraulic cylinders etc
Auto-tack welding system: 2sets of KN-350 Co2 welding machine auto welding unit.
Spare parts:3 buttons 3 pieces of 4A 2A fuses each

Technique document (send out to clientele after bargain go into effect ):

a, Operating manual(including electrical diagram)

b, Delivery list

c, Certificate

d, Foundation diagram

e, Transducer operation instruction , hydraulic pump operation instruction.

Technical Parameters:

Model	HZL-1200	HZL-1500	HZL-1800
Web Height (mm)	200-1200	200-1500	200-1800
Web Thickness (mm)	6-32
Web Length (mm)	4000-15000
Flange Plate Width (mm)	200-800
Flange Plate Thickness (mm)	6-40
Assembling-standing Speed (mm/min)	500-6000
Input Roller Way (mm)	2600×3
Output Roller Way (mm)	2600×3
Draw Bar Box	2 pieces
Centering Type	Use hydraulic linkage mechanism to achieve automatic clamp and centering and the middle spot welding
Speed Control	AC frequency converter (stepless speed)
Input Capacity	9.5 KW (not including welding power supply)
Welding System	KN-350 Gas-shielded welding machine,2 sets
